Khoom Description

Lub tshuab txais ib lub txaj, ruaj kem thiab lub rooj zaum - hom layout nrog ib sab -mounted headstock. Lub rooj ua haujlwm yog tsim los ua tus qauv ntoo khaub lig nrog rau sab sauv thiab qis. Lub taub hau txav vertically raws cov kev taw qhia ntawm kem, thiab cov lus tsa tseem ceeb ntawm lub tshuab yog kev txav txav ntawm lub spindle.

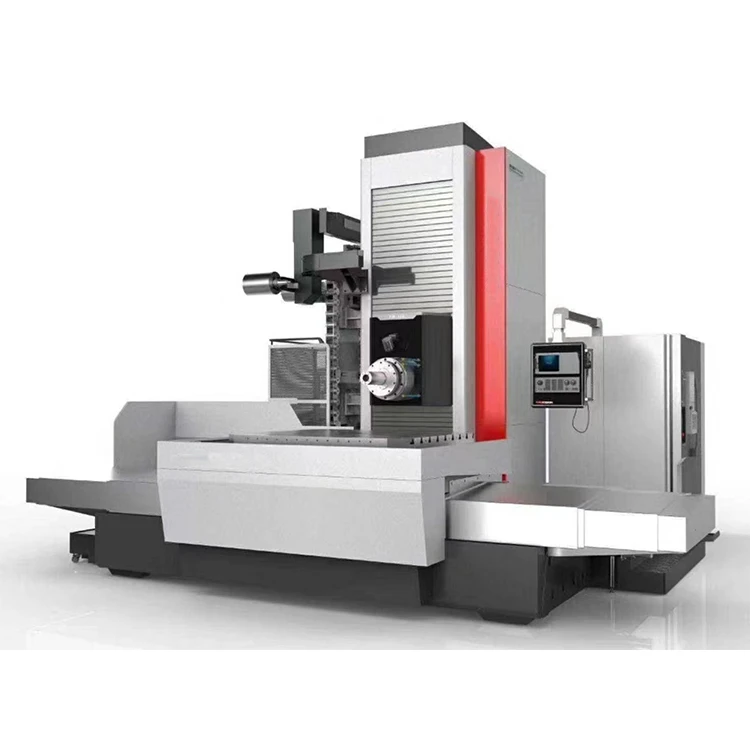

automatic boring and milling machine

Cov khoomNta

Yam khoom	Specification	Chav tsev	TK6111 S
Headstock & Spindle	tho txawv spindle txoj kab uas hla	mm	110
	Spindle taper bore	-	7:24 TSİ 50
	Tool tuav hom	-	BT50
	Rub stud specification	-	P50T-I
	Spindle ceev ntau yam	r / min	10 – 2000
	Rated zog ntawm lub ntsiab lub cev muaj zog	kW	15
	Qhov siab tshaj plaws spindle torque	N·m	1200
	Maximum axial thrust ntawm spindle	N	15000
	Min. deb ntawm spindle center mus rau worktable nto	mm	0 – 2000
	Kev ncua deb ntawm spindle kawg ntsej muag mus rau worktable center	mm	0 – 1500
Lub rooj ua haujlwm	Worktable tag nrho dimension	mm	1250 × 1400
Lub rooj ua haujlwm	Max load peev xwm ntawm worktable	kg	5000
Tool Magazine (Yeem)	Cov cuab yeej magazine muaj peev xwm	pcs	40
	Max. Tool diameter / Max. cuab tam ntev	mm	125 / 400
	Qhov siab tshaj plaws ib lub cuab yeej hnyav	kg	25
	Tool-rau- lub sij hawm hloov lub cuab tam	s	16
Axis Ncig Tebchaws	X-axis (Ua haujlwm hla mus los)	mm	2000
	Y-axis (Headstock ntsug mus ncig)	mm	2000
	Z-axis (ua haujlwm ntev mus ncig)	mm	1500
	W-axis (Spindle axial mus ncig)	mm	600
Feed Speed Range	X / Y / Z axis	hli/min	2.5 – 10000
Feed Speed Range	W axis	hli/min	2.5 – 10000
Rapid Traverse Ceev	X / Y / Z axis	hli/min	10000
	W axis	hli/min	10000
	B axis	r / min	1
Positioning raug	X, Y, Z axis	mm	0.015
	W axis	mm	0.02
	B axis	″ (arcsecond)	8
Rov ua qhov tseeb qhov tseeb	X, Y, Z axis	mm	0.012
	W axis	mm	0.012
	B axis	″ (arcsecond)	6
Tag nrho cov hluav taws xob fais fab (kwv yees)	-	kVA ua	50
	-	mm	6500 × 4100 × 4000
	-	kg	23500
Tshuab ntawv hlau & kev tiv thaiv	Tag nrho tshuab enclosure	-	Tag nrho tshuab enclosure

Cov khoom ntim

automatic boring and milling machine

Vim li cas thiaj xaiv peb

1.Reliable zoo guaranteed

Tag nrho cov castings undergo natural aging kho rau ntau tshaj ib xyoos. Txhua qhov chaw tswj hluav taws xob dhau 72-teev kev laus kuaj. Tag nrho cov khoom tiav tiav ua tiav 72-teev kev sim ua ntej xa khoom.

2.Tom qab- kev muag khoom yog lav.

Peb yuav muab kev daws teeb meem hauv 8 teev tom qab tau txais kev thov kho thiab tuaj txog ntawm qhov chaw hauv 24 teev! Lub tuam txhab solemnly cog lus rau lub neej txij nkawm thiab kev sib tham dawb!

3. Kev cob qhia dawb

Peb muab kev cob qhia dawb. Cov neeg siv khoom raug tso cai xa cov neeg ua haujlwm rau peb lub tuam txhab kom tau txais kev cob qhia kev ua haujlwm pub dawb thiab kev cob qhia kev saib xyuas theem pib.

Hoobkas

Professional Heavy-Lub luag haujlwm CNC Chaw tsim tshuaj paus:

Nrog xyoo ntawm R&D thiab kev tsim khoom hauv hnyav-lub luag haujlwm CNC tshuab cuab yeej, peb muaj cov cuab yeej paub tab thiab kev tswj xyuas zoo tshaj plaws los lav cov khoom lag luam txhim khu kev qha thiab ruaj khov hnyav- lub luag haujlwm ua haujlwm.

Customization Service:

Peb muab cov kev hloov pauv hloov tau raws li qhov xav tau (spindle ceev, tswj qhov system, 4th / 5th axis, txias system) kom ua tau raws li tus kheej hnyav -lub luag haujlwm machining xav tau ntawm cov neeg siv khoom.

Ntiaj teb no Tom qab-Kev them nyiaj yug muag:

Peb muab ib qho - nres txawv teb chaws tom qab - kev muag khoom suav nrog rau ntawm - qhov chaw qhia kev teeb tsa, kev cob qhia tus neeg ua haujlwm tshaj lij, thiab lub sijhawm ntev - muab cov khoom qub qub kom ruaj khov ntawm cov khoom siv nyob rau txawv teb chaws.

Strict Quality Assurance:

Tag nrho cov khoom hnyav- cov cuab yeej siv lub tshuab ua haujlwm tau kuaj xyuas nruj thiab kuaj xyuas qhov tseeb ua ntej xa khoom, nrog rau 12 lub hlis lav rau cov khoom tseem ceeb thiab kev txhawb nqa mus ntev.
