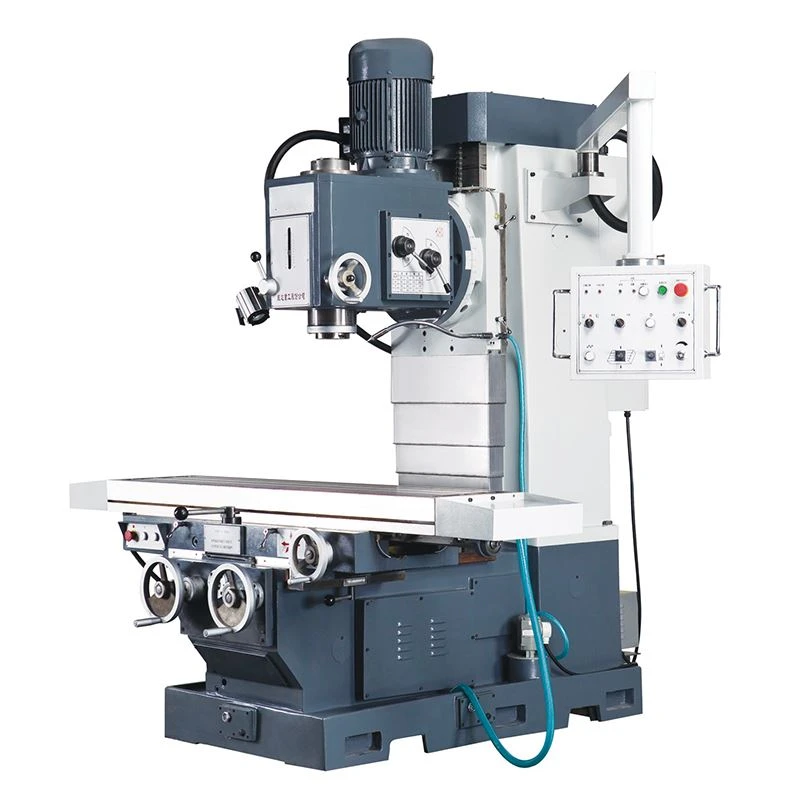

XA7140 txaj hom milling tshuab yog cais raws li dav dav - lub hom phiaj tshuab, XA7140 txaj hom milling tshuab yog tsim los ua cov khoom siv xws li ntau yam hlau, yas, thiab ntoo. Nws haum rau ntau yam cutters-xws li cylindrical, disc, lub kaum sab xis, daim ntawv, thiab kawg mills- rau tshuab nto, inclined dav hlau, grooves, thiab gears. Cov khoom siv xaiv tau, xws li lub taub hau sib faib thoob ntiaj teb, tuaj yeem muab ntxiv los nthuav nws cov peev txheej machining.
Cov yam ntxwv ntawm XA7140 txaj hom milling tshuab
1: Lub tshuab nta siab rigidity, ua rau nws tiv taus hnyav - cov haujlwm txiav.
2: Nruab nrog lub siab - lub zog spindle lub cev muaj zog thiab ntau qhov ceev, nws ua kom cov cuab yeej ua tau zoo thiab txhawb siab - txiav ceev.
3: Hnav-nrawm castings yog ua los ntawm kev hnav-tiv taus vanadium-titanium cam khwb cia hlau, thaum cov khoom tseem ceeb siv siab- zoo alloy steel, kom ruaj khov thiab kav ntev.
Technical Specifications
|
Specification |
Chav tsev |
XA 7140 |
|
TABSIS |
||
|
Lub rooj loj |
mm |
1400x400 |
|
T qhov |
tsis muaj |
3 |
|
T qhov loj me (dav) |
mm |
18 |
|
T slot center nrug |
mm |
100 |
|
Max. load ntawm rooj |
kg |
800 |
|
MACHINING SIAB |
||
|
X axis Ntev mus ncig |
mm |
1000 |
|
Y axis Hla mus ncig |
mm |
400/360(带数显) |
|
Z axis Vertical taug kev |
mm |
150-650 |
|
MAIN SIAB |
||
|
Spindle taper |
ISO 50 |
|
|
Quill taug kev |
mm |
105 |
|
Spindle ceev / kauj ruam |
rpm ua |
18-1800/无级 |
|
Spindle axis rau sab saum npoo |
mm |
520 |
|
Spindle qhov ntswg rau saum rooj |
mm |
150-650 |
|
NYIAJ |
||
|
Longitudinal / hla pub thiab kauj ruam |
mm / min |
18-627/9 |
|
Vertical pub thiab kauj ruam |
18-627/9 |
|
|
Longitudinal / hla ceev ceev |
mm / min |
1670 |
|
Rapid Traverse ntsug |
1670 |
|
|
Hwj chim |
||
|
Main lub cev muaj zog |
kws |
7.5 |
|
Pub lub cev muaj zog |
kws |
0.75 |
|
Elevating lub cev muaj zog rau headstock |
Kw |
0.75 |
|
Coolant lub cev muaj zog |
kws |
0.04 |
|
Lwm tus |
||
|
Tag nrho qhov ntev |
cm |
229x177x212 |
|
Tshuab hnyav |
kg |
3860 |
Cov ntawv ntim khoom
|
Tsis muaj. |
Lub npe |
Qauv |
Qty. |
|
1 |
Mill tshuab |
XA 7140 |
1 |
|
2 |
Mill chuck |
1set ib |
|
|
3 |
Sab hauv - hexagon panner |
5,12 |
1 |
|
4 |
Nruab nrab - tes tsho |
ISO50-MT4, MT4-MT3, MT4-MT2 |
1 |
|
5 |
Kos bar |
M24,M16, M12,M10 |
1 |
|
6 |
Ntsia hlau |
S16-18,S21-24, S32-36 |
1 |
|
8 |
Plhaub kawg zeb arbors |
1 |
|
|
9 |
Foundation bolt |
M20 |
6 |
|
10 |
Txiv ntseej |
M24 , M20 |
4,6 |
|
11 |
Lub tshuab ntxhua khaub ncaws |
20 |
6 |
|
12 |
Wedge shifter |
6 |
|
|
13 |
Phau ntawv ua haujlwm |
1 |
|
|
14 |
Daim ntawv pov thawj zoo |
1 |
|
|
15 |
Cov ntawv ntim khoom |
1 |
|
|
16 |
Transducer qhia |
1 |
