Khoom Description

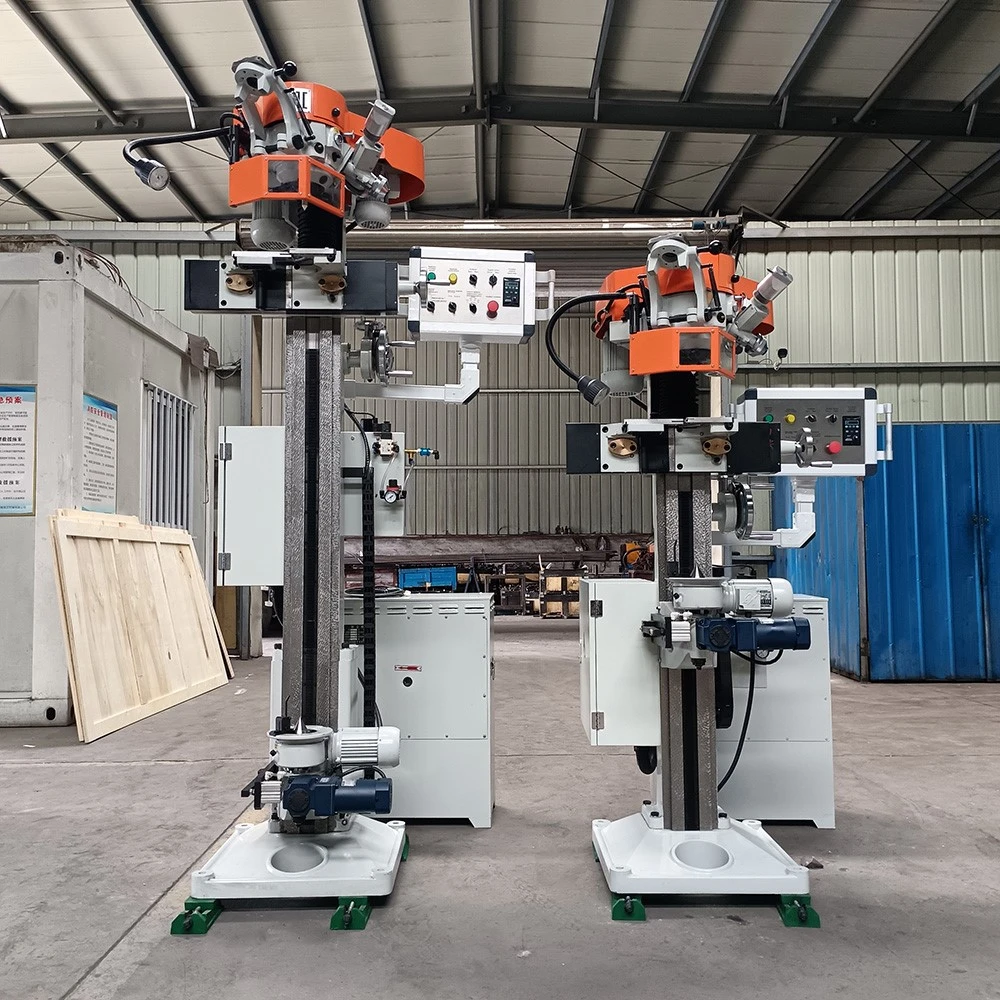

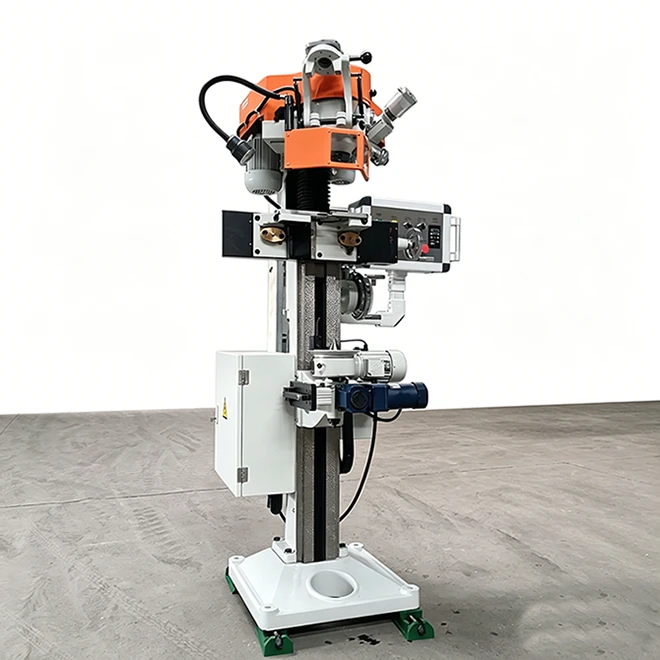

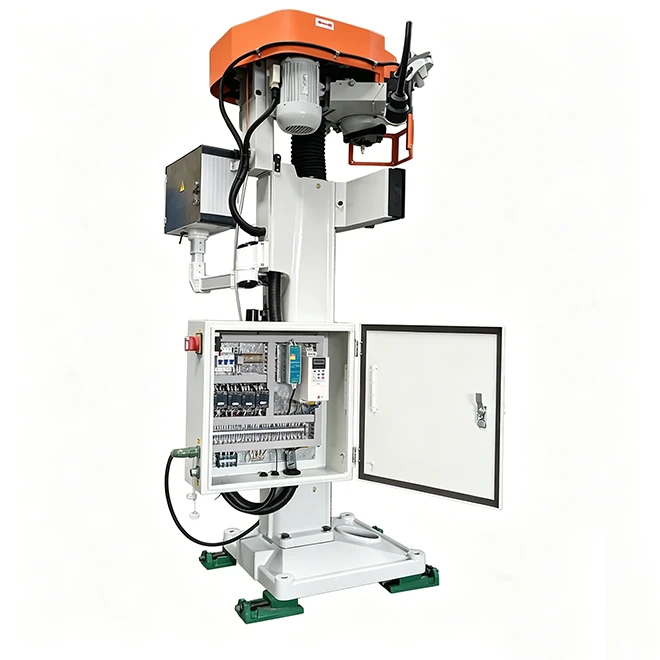

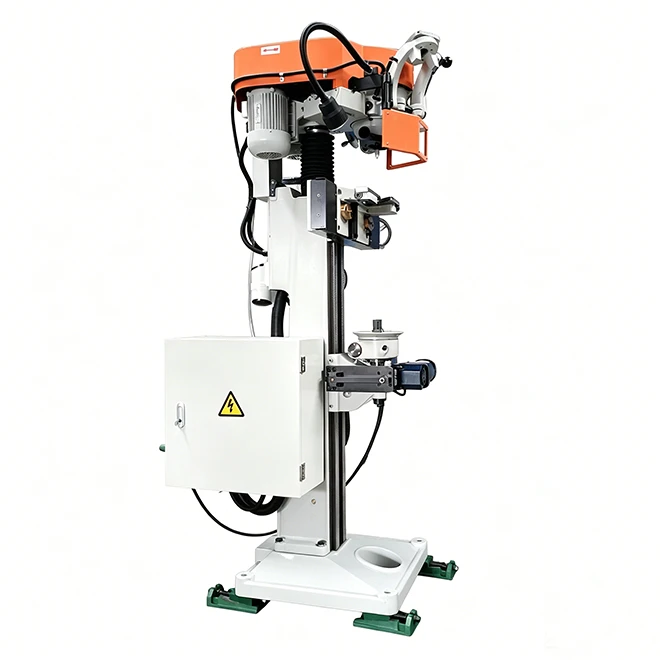

Vertical Center Qhov Sib Tsoo Tshuab

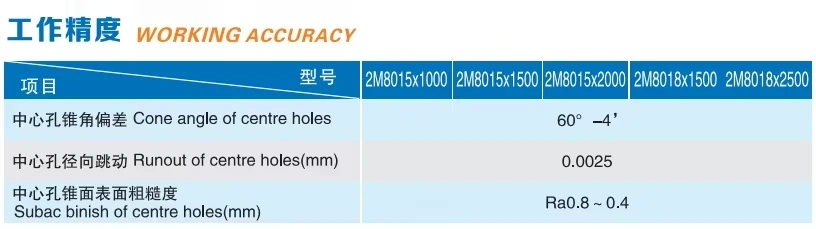

2M8015, 2M8018 series center qhov sib tsoo tshuab yog qhov nqus ntawm tib hom tshuab cuab yeej hauv tsev thiab txawv teb chaws hauv xyoo 1967 raws li kev tshawb fawb thiab kev tsim, feem ntau yog siv rau ntau yam precision ncej ntawm qhov chaw sib tsoo. Txhim kho lub coaxiality ntawm qhov chaw nruab nrab ntawm ob qhov kawg thiab qhov sib npaug, Lub kaum sab xis thiab qhov ntxhib ntawm ib lub qhov nruab nrab los xyuas kom meej qhov roughness ntawm sab nrauv sib tsoo.
Lub tshuab yog tsim rau cuttool, spindle, cuab yeej tuav, iav shafts thiab tempered kis tau tus mob shafts thiab lub workpiece thov kom muaj tseeb ntawm cylindrical sib tsoo. Qhov zoo ntawm cylindricalgrinding yuav nyob ntawm qhov chaw ntawm qhov chaw ncig geometrical raug.
Khoom zoo

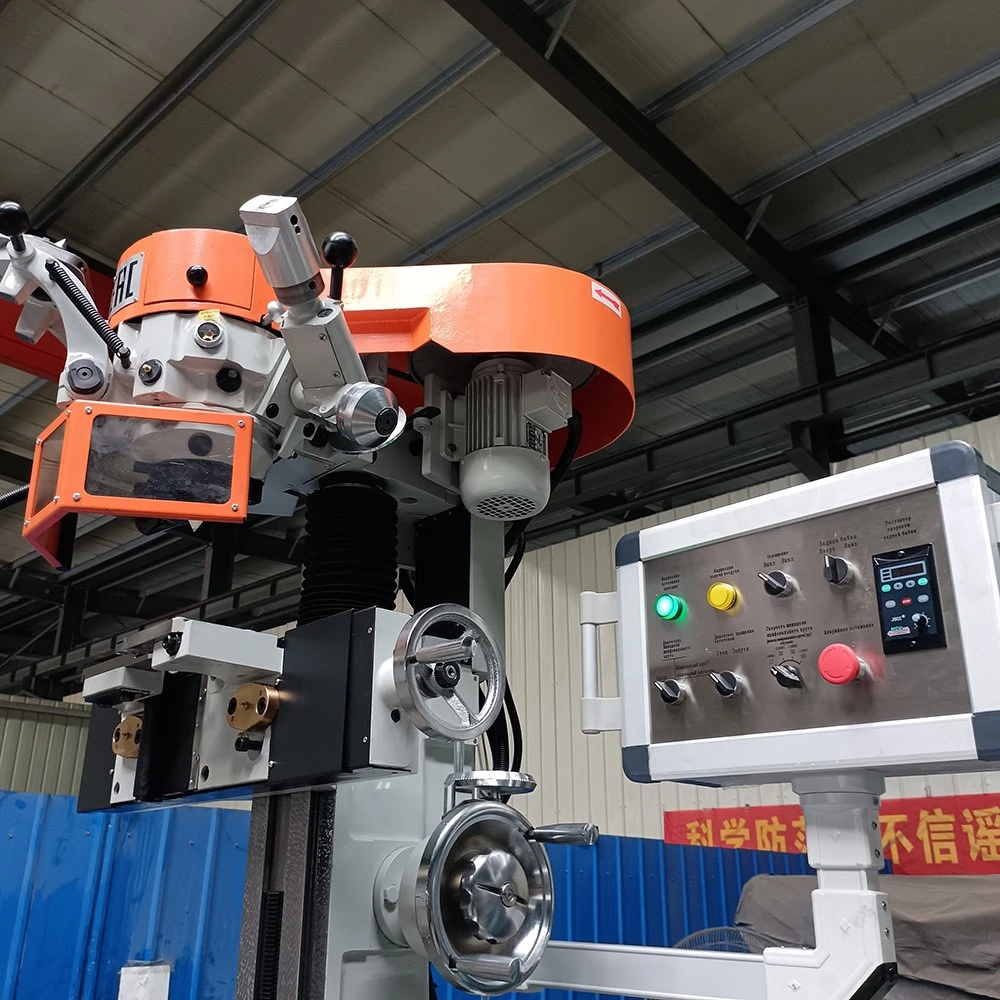

1. Lub upward thiab downward txav guideway ntawm lub taub hau sib tsoo adopts ob V qauv, thiab upward thiab downward txav guideway ntawm lub tailstock txais dovetail guideway qauv, uas ua kom lub siab rigidity thiab stability ntawm lub tshuab cuab yeej.
2. Tag nrho cov kev taw qhia qhov chaw thiab qhov chaw tiv tauj raug muab pov tseg thiab tshawb fawb manually.
3. Lub ntxaiv ntawm lub taub hau sib tsoo txais yuav cov khoom siv siab- zaus hluav taws xob ntxaiv, thiab qhov ceev tuaj yeem hloov kho tsis tu ncua los ntawm 0 txog 60,000rpm los ntawm kev hloov pauv zaus.
4. Kev pub mis rau sab sauv thiab qis ntawm lub taub hau sib tsoo tuaj yeem pub tau manually lossis txiav.
5. Thaum hnav lub log sib tsoo, tus cwj mem pob zeb diamond tuaj yeem txav mus los ntawm kev sib tsoo lub khob hliav qab hauv txoj kab ncaj nraim, tab sis kuj nyob rau tib lub sijhawm, lateral rov qab vibration. Ua tiav kev ywj pheej ntawm txoj hauj lwm ntawm tus cwj mem pob zeb diamond thiab qhov cuam tshuam ntawm kev hnav.

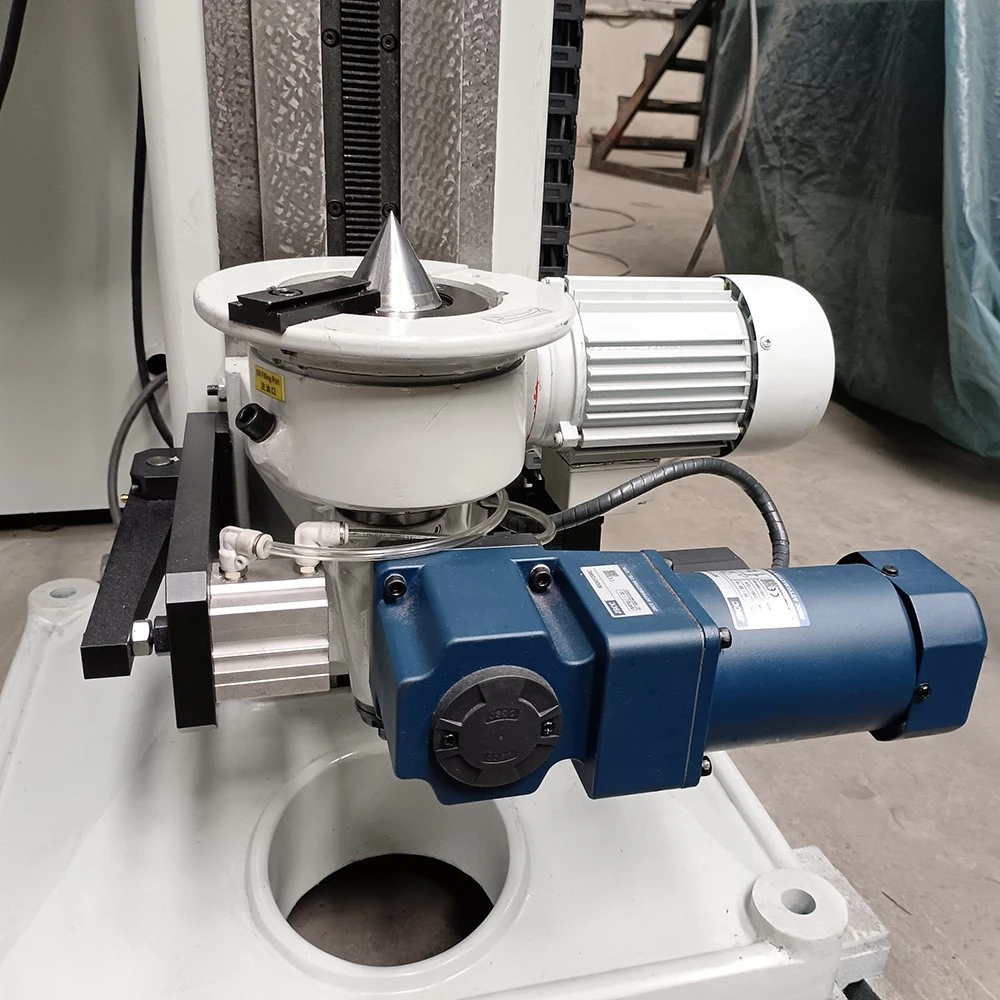

6. Lub workpiece clamping adopts tsis siv neeg centering clamping ntaus ntawv kom yooj yim rau installation thiab hloov ntawm workpiece.
Cov khoom xa tuaj
