Khoom Description

Txheej txheem cej luam:

Peb CNC Centerless Sib Tsoo Tshuab yog lub cuab yeej muaj zog thiab txhim khu kev qha tsim los rau precision machining ntawm hlau thiab lwm yam ntaub ntawv nyuaj. Ua nrog cov qauv nruj thiab cov txheej txheem spindle siab heev, nws muab qhov tseeb tshwj xeeb, kev ua haujlwm du, thiab ntev - lub sij hawm durability - zoo tagnrho rau kev tsim khoom, pwm tsim, thiab daim ntawv thov kev cob qhia.

Cov yam ntxwv tseem ceeb:

High Precision: Hardened thiab hauv av spindle kom raug thiab ruaj khov txiav.

Kev tsim kho muaj zog: Hnyav - lub luag haujlwm cam khwb cia hlau lub cev kom ruaj khov thiab kev co kuj.

Variable Speed: Adjustable spindle ceev rau ntau yam machining hauj lwm.

Smooth Table Movement: Precision guideways for easy and precise positioning.

Tus neeg siv- Tus phooj ywg: Cov vaj huam sib luag tswj tau yooj yim thiab ergonomic tsim rau kev ua haujlwm yooj yim.

Kev siv ntau yam: Haum rau milling, drilling, tho txawv, thiab slotting ntawm hlau thiab lwm yam ntaub ntawv.

Kev Kho Mob Tsawg: Cov khoom siv ruaj khov nrog lub neej ua haujlwm ntev thiab txhim khu kev qha.

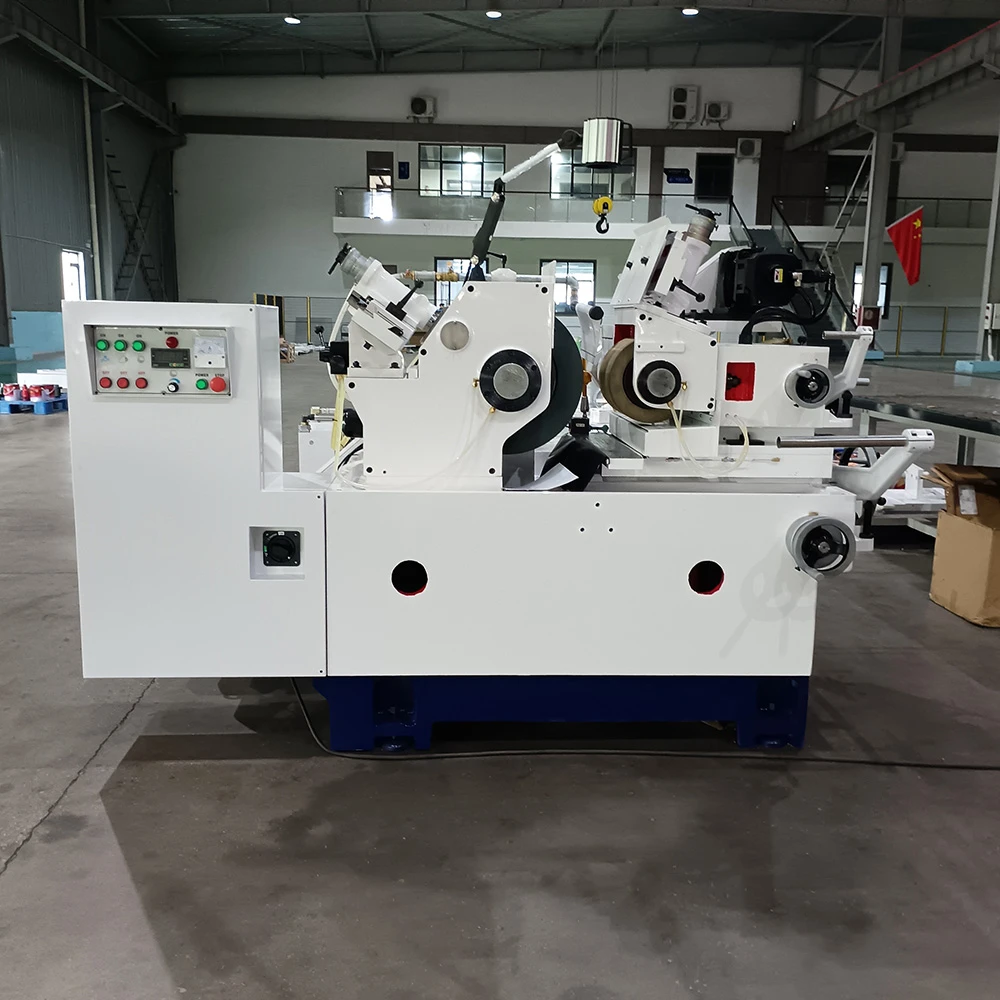

CNC Centerless Grinding Machine

Yam khoom	Chav tsev	CG18 CNC-1A
Standard worktable ua hauj lwm txoj kab uas hla	mm	Ф1-Ф50
Tshwj xeeb worktable ua hauj lwm txoj kab uas hla	mm	Ф40-Ф100
Sib tsoo log qhov ntev (txheej txoj kab uas hla x dav x puab txoj kab uas hla)	mm	Ф455x205Xф228.6
Hnav lub log qhov ntev (txheej txoj kab uas hla x dav x sab hauv txoj kab uas hla)	mm	Ф255x205xФ111.2
Sib tsoo log ceev	RPM	1500
Hnav lub log ceev	RPM	0~320
Sib tsoo log tsav lub cev muaj zog	HP	15
Hnav lub log tsav lub cev muaj zog	KW	3.0
Hydraulic twj tso kua mis tsav lub cev muaj zog	HP	1.5
Txias twj tso kua mis tsav lub cev muaj zog	HP	1/4
Worktable pub servo lub cev muaj zog	KW	1.5
Operating system xaiv		1.Delta 2.NewTai 3.Mitsubishi 4.Siemens
Hnav khaub ncaws log feed scale	mm	3.5mm / tig 0.05mm / nplai
Hnav khaub ncaws lub log pub nplua kev hloov scale	mm	0.1mm / tig 0.001 / nplai
Truing ntaus ntawv feed scale	mm	2mm / tig 0.01mm / nplai
Hnav lub log qaij lub kaum sab xis	degree	'+5℃~﹣3 degree
Hnav lub log tig lub kaum sab xis	degree	± 5 degree
Tshuab hnyav	kg	3000
Ntim hnyav	kg	3300
Tshuab qhov ntev	mm	226519001650
Ntim qhov ntev	mm	240021001750

Hluav taws xob System

-Txhua cov khoom siv hluav taws xob thiab cov khoom siv hluav taws xob ntawm lub tshuab tswj hluav taws xob yog los ntawm Schneider, thiab cov khoom siv hluav taws xob thiab cov khoom siv tau raws li ISO, CE, thiab EMC cov qauv. Cov no ua kom lub neej ua haujlwm ntev, muaj zog tiv thaiv - muaj peev xwm cuam tshuam, thiab ua haujlwm ruaj khov. Lub tshuab yog nruab nrog tshwj xeeb kev nyab xeeb nres thaum muaj xwm ceev thiab tag nrho kev tiv thaiv interlock system kom ntseeg tau tias ob tus neeg teb xov tooj thiab tshuab kev nyab xeeb.

Sib tsoo log spindle thiab alloy bearings

-Ob lub log sib tsoo spindle thiab regulating log spindle yog tsim los ntawm Nyiv cov khoom siv SNCM-220H, uas tau txais kev kho cua sov carburizing thiab kev kho mob sib sib zog nqus cryogenic tswj los ntawm lub computer. Lub hardness saum npoo yog siab dua HRC60 degree

-Cov bearings alloy siv lub tes tsho tapered dynamic siab roj zaj duab xis system.Qhov no ua kom ruaj khov thiab precision txawm tias tom qab ua haujlwm ntev.

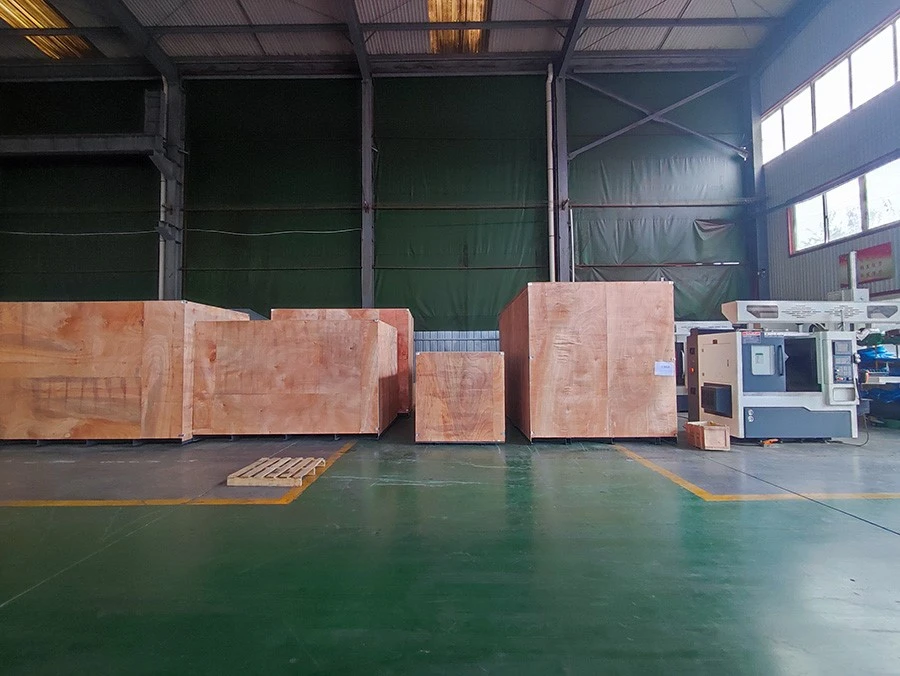

Cov khoom xa tuaj

Peb cov khoom tau ua tib zoo ntim kom muaj kev nyab xeeb kev xa khoom thiab tswj xyuas qhov zoo. Peb siv cov khoom siv ruaj khov, eco-cov ntaub ntawv ntim khoom zoo uas tiv thaiv cov khoom thaum caij tsheb thauj mus los thaum xav txog kev cuam tshuam ib puag ncig. Kev xaiv ntim khoom kuj muaj los ua kom tau raws li cov kev xav tau tshwj xeeb. Txhua pob yog tsim los kom muaj kev ruaj ntseg ntawm cov khoom, kom ntseeg tau tias nws ncav cuag koj zoo meej

Lub Sijhawm Lead: 15 - 21 Hnub tom qab paub meej tias them nyiaj.

Vim Li Cas Xaiv Peb

Peb mob siab rau muab cov khoom zoo tshaj plaws nrog cov neeg siv khoom tsis sib xws. Peb txoj kev mob siab rau kev ua tau zoo thiab cov neeg siv khoom txaus siab ua rau peb sib nrug hauv kev ua lag luam.

Nov yog vim li cas koj yuav tsum xaiv peb:

Premium Quality:Peb tsuas yog cov ntaub ntawv zoo tshaj plaws los xyuas kom meej cov khoom saum toj kawg nkaus -notch.

Tus nqi sib tw:Tau txais tus nqi zoo tshaj rau koj cov nyiaj nrog peb cov nqi pheej yig.

Txhim khu kev xa khoom:Peb lav kev xa khoom raws sij hawm thiab nyab xeeb ntawm txhua qhov kev txiav txim.

Cov neeg siv khoom tsom:Peb pab neeg mob siab rau kev txhawb nqa yeej ib txwm muaj los pab koj.

Ntiaj teb no ncav cuag:Peb pab cov neeg siv khoom thoob ntiaj teb nrog cov kev daws teeb meem kom tau raws li cov kev xav tau tshwj xeeb.
